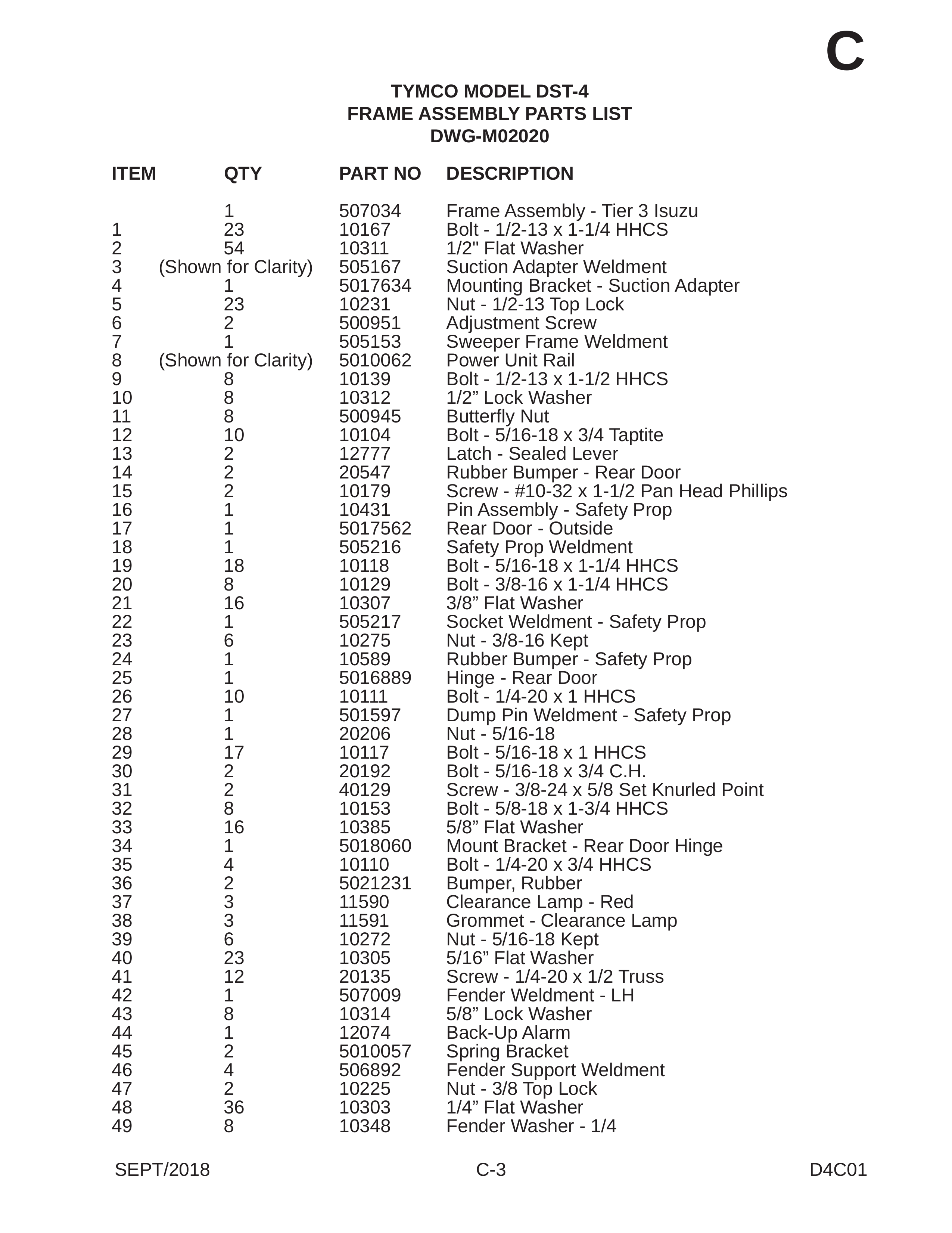

TYMCO MODEL DST-4
48 parts
Selected Part
| # | Qty | Part No. | Description | |
|---|---|---|---|---|
| 1 | 1 | 507034 | Frame Assembly - Tier 3 Isuzu | |
| 1 | 23 | 10167 | Bolt - 1/2-13 x 1-1/4 HHCS | |
| 2 | 54 | 10311 | 1/2" Flat Washer | |
| 4 | 1 | 5017634 | Mounting Bracket - Suction Adapter | |
| 5 | 23 | 10231 | Nut - 1/2-13 Top Lock | |
| 6 | 2 | 500951 | Adjustment Screw | |
| 7 | 1 | 505153 | Sweeper Frame Weldment | |
| 9 | 8 | 10139 | Bolt - 1/2-13 x 1-1/2 HHCS | |
| 10 | 8 | 10312 | 1/2” Lock Washer | |
| 11 | 8 | 500945 | Butterfl y Nut | |
| 12 | 10 | 10104 | Bolt - 5/16-18 x 3/4 Taptite | |
| 13 | 2 | 12777 | Latch - Sealed Lever | |
| 14 | 2 | 20547 | Rubber Bumper - Rear Door | |
| 15 | 2 | 10179 | Screw - #10-32 x 1-1/2 Pan Head Phillips | |
| 16 | 1 | 10431 | Pin Assembly - Safety Prop | |
| 17 | 1 | 5017562 | Rear Door - Outside | |
| 18 | 1 | 505216 | Safety Prop Weldment | |
| 19 | 18 | 10118 | Bolt - 5/16-18 x 1-1/4 HHCS | |
| 20 | 8 | 10129 | Bolt - 3/8-16 x 1-1/4 HHCS | |
| 21 | 16 | 10307 | 3/8” Flat Washer | |
| 22 | 1 | 505217 | Socket Weldment - Safety Prop | |
| 23 | 6 | 10275 | Nut - 3/8-16 Kept | |
| 24 | 1 | 10589 | Rubber Bumper - Safety Prop | |
| 25 | 1 | 5016889 | Hinge - Rear Door | |
| 26 | 10 | 10111 | Bolt - 1/4-20 x 1 HHCS | |
| 27 | 1 | 501597 | Dump Pin Weldment - Safety Prop | |
| 28 | 1 | 20206 | Nut - 5/16-18 | |
| 29 | 17 | 10117 | Bolt - 5/16-18 x 1 HHCS | |
| 30 | 2 | 20192 | Bolt - 5/16-18 x 3/4 C.H. | |
| 31 | 2 | 40129 | Screw - 3/8-24 x 5/8 Set Knurled Point | |
| 32 | 8 | 10153 | Bolt - 5/8-18 x 1-3/4 HHCS | |
| 33 | 16 | 10385 | 5/8” Flat Washer | |
| 34 | 1 | 5018060 | Mount Bracket - Rear Door Hinge | |
| 35 | 4 | 10110 | Bolt - 1/4-20 x 3/4 HHCS | |
| 36 | 2 | 5021231 | Bumper, Rubber | |
| 37 | 3 | 11590 | Clearance Lamp - Red | |
| 38 | 3 | 11591 | Grommet - Clearance Lamp | |
| 39 | 6 | 10272 | Nut - 5/16-18 Kept | |
| 40 | 23 | 10305 | 5/16” Flat Washer | |
| 41 | 12 | 20135 | Screw - 1/4-20 x 1/2 Truss | |
| 42 | 1 | 507009 | Fender Weldment - LH | |
| 43 | 8 | 10314 | 5/8” Lock Washer | |
| 44 | 1 | 12074 | Back-Up Alarm | |
| 45 | 2 | 5010057 | Spring Bracket | |
| 46 | 4 | 506892 | Fender Support Weldment | |
| 47 | 2 | 10225 | Nut - 3/8 Top Lock | |
| 48 | 36 | 10303 | 1/4” Flat Washer | |
| 49 | 8 | 10348 | Fender Washer - 1/4 |
