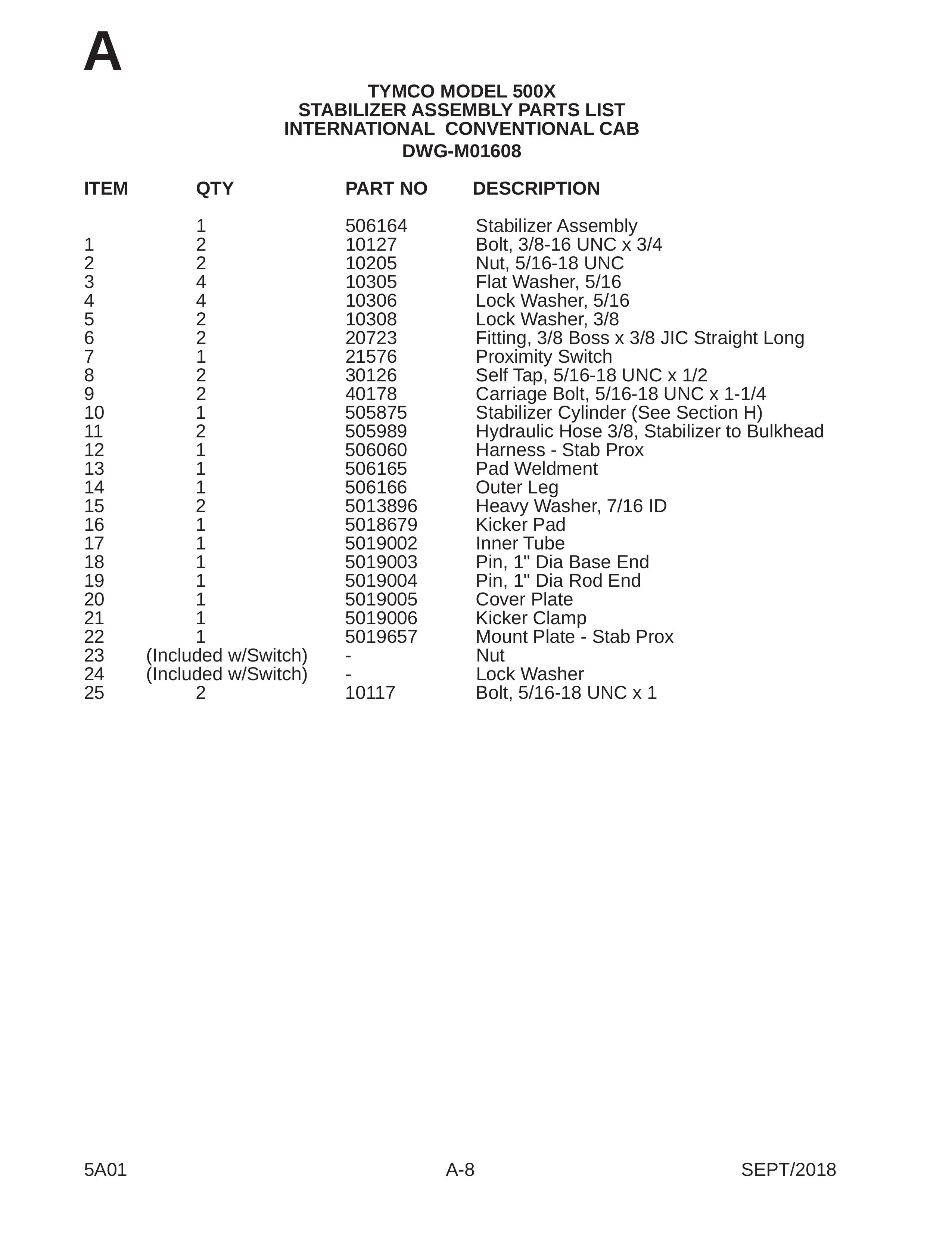

TYMCO MODEL 500X
24 parts
Selected Part
| # | Qty | Part No. | Description | |
|---|---|---|---|---|
| 1 | 1 | 506164 | Stabilizer Assembly | |
| 1 | 2 | 10127 | Bolt, 3/8-16 UNC x 3/4 | |
| 2 | 2 | 10205 | Nut, 5/16-18 UNC | |
| 3 | 4 | 10305 | Flat Washer, 5/16 | |
| 4 | 4 | 10306 | Lock Washer, 5/16 | |
| 5 | 2 | 10308 | Lock Washer, 3/8 | |
| 6 | 2 | 20723 | Fitting, 3/8 Boss x 3/8 JIC Straight Long | |
| 7 | 1 | 21576 | Proximity Switch | |
| 8 | 2 | 30126 | Self Tap, 5/16-18 UNC x 1/2 | |
| 9 | 2 | 40178 | Carriage Bolt, 5/16-18 UNC x 1-1/4 | |
| 10 | 1 | 505875 | Stabilizer Cylinder (See Section H) | |
| 11 | 2 | 505989 | Hydraulic Hose 3/8, Stabilizer to Bulkhead | |
| 12 | 1 | 506060 | Harness - Stab Prox | |
| 13 | 1 | 506165 | Pad Weldment | |
| 14 | 1 | 506166 | Outer Leg | |
| 15 | 2 | 5013896 | Heavy Washer, 7/16 ID | |
| 16 | 1 | 5018679 | Kicker Pad | |
| 17 | 1 | 5019002 | Inner Tube | |
| 18 | 1 | 5019003 | Pin, 1" Dia Base End | |
| 19 | 1 | 5019004 | Pin, 1" Dia Rod End | |
| 20 | 1 | 5019005 | Cover Plate | |
| 21 | 1 | 5019006 | Kicker Clamp | |
| 22 | 1 | 5019657 | Mount Plate - Stab Prox | |
| 25 | 2 | 10117 | Bolt, 5/16-18 UNC x 1 |
