Page 452
14 parts
Selected Part
| # | Qty | Part No. | Description | |
|---|---|---|---|---|

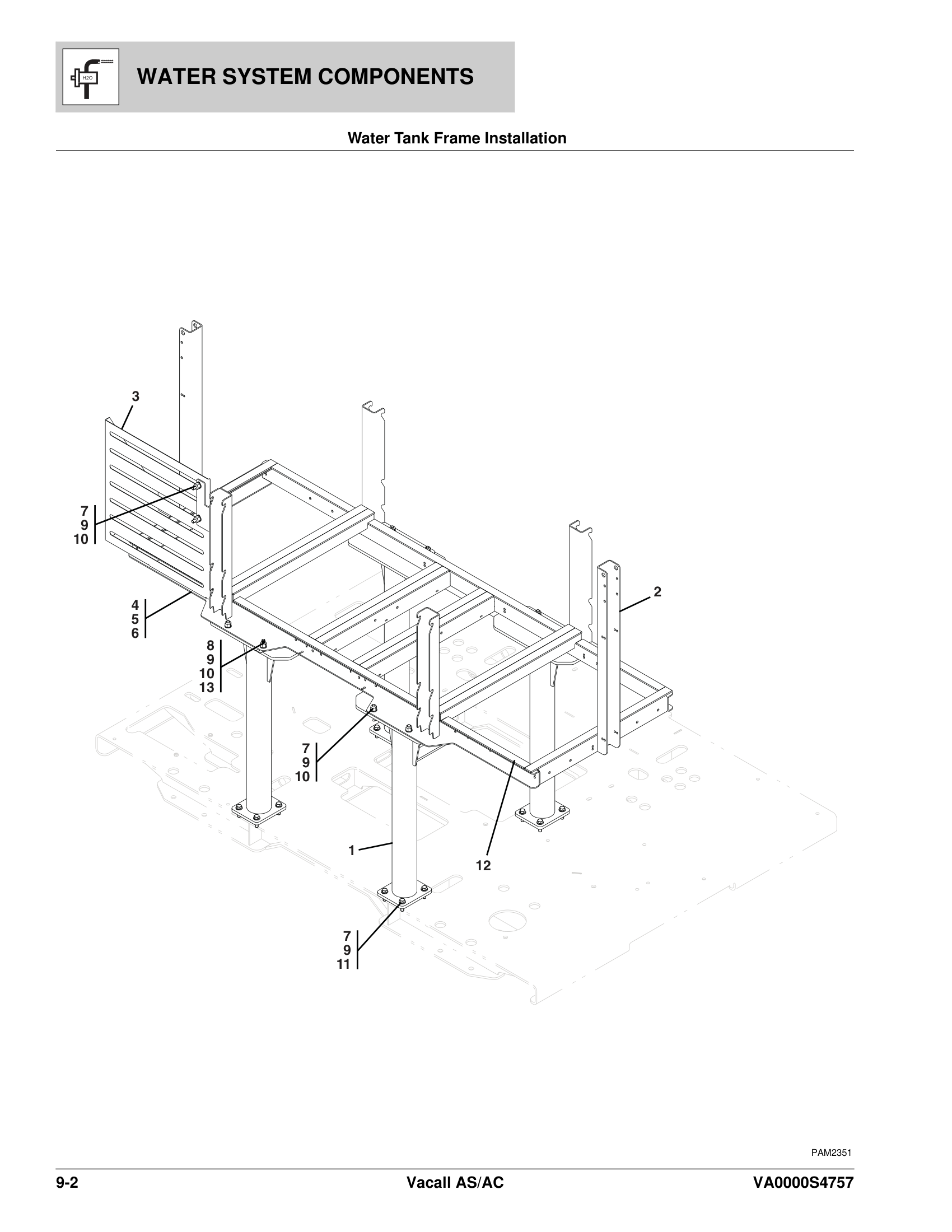

| Ref | 1190480004 | WATER TANK FRAME INSTALLATION, (includes all items) | ||
| 1 | 4 | 1160480002 | WATER TANK SUPPORT LEG WELDMENT | |
| 2 | 1 | 1160480003 | WATER TANK FRAME WELDMENT | |
| 3 | 1 | 1110480002 | HEAT SHIELD GUARD | |
| 4 | 4 | 88201036 | HEX HD CAPSCREW, 3/8-16X1-1/4, GR5 | |
| 5 | 8 | 90027470 | HARDEND WASHER, 3/8 | |
| 6 | 4 | 88521206 | LOCKNUT, 3/8-16 | |
| 7 | 25 | 88201068 | HEX HD CAPSCREW, 1/2-13X1-3/4, GR5 | |
| 8 | 1 | 88681520 | T-SLOT BOLT, 1/2-13X2 | |
| 9 | 35 | 90027471 | HARD WASHER, 1/2X1-1/16X.095 | |
| 10 | 10 | 88521208 | LOCKNUT, 1/2-13 | |
| 11 | A/R | 14403364 | LOCTITE, 242 BLUE | |
| 12 | 40’ | 1130480003 | RUBBER PADDING | |
| 13 | 1 | 1110480023 | T-BOLT RETAINER |
